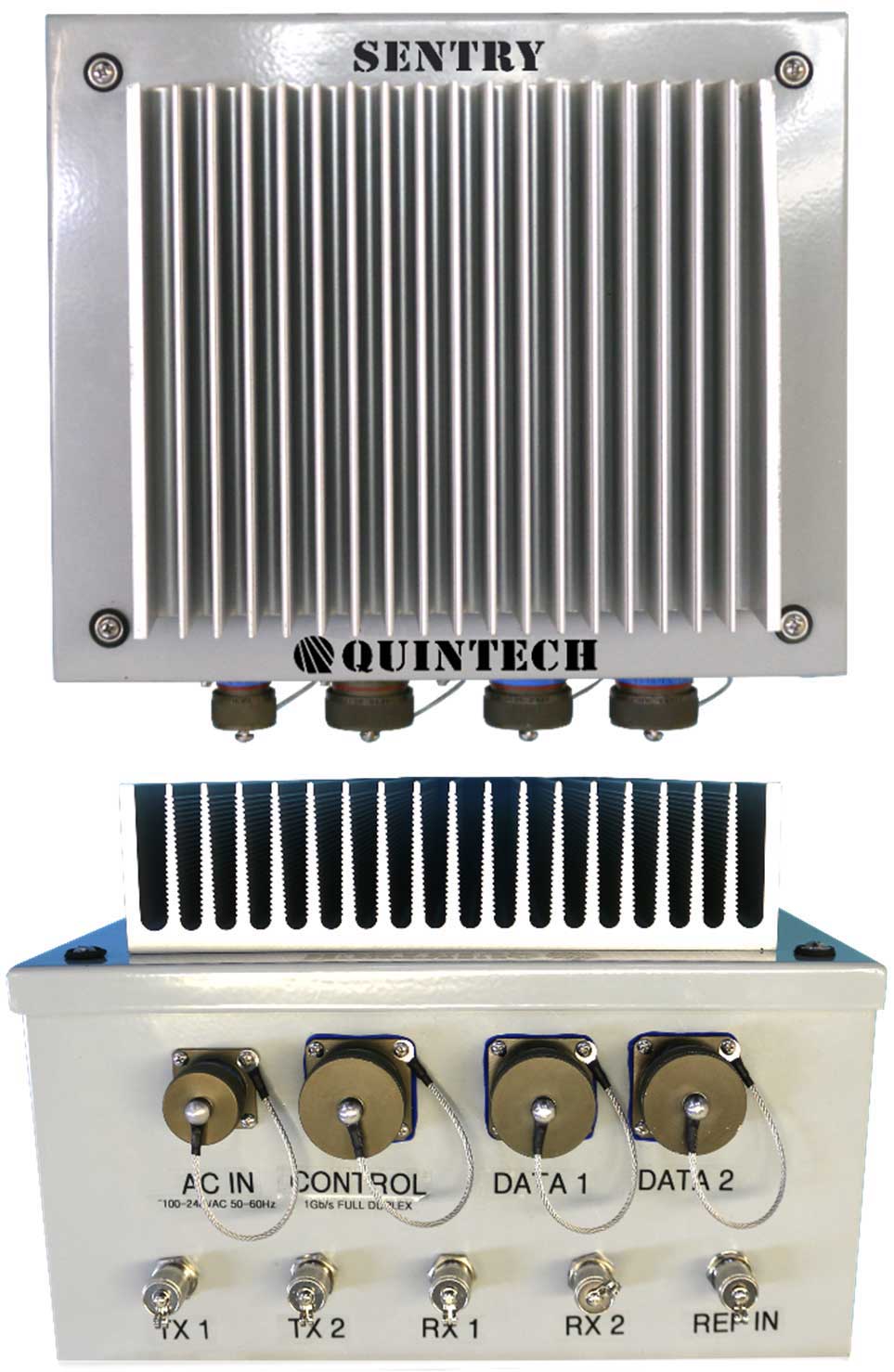

SENTRY RFoIP ADC/DAC Outdoor Unit

The SENTRY outdoor unit enables RF over IP transport for digitized and encapsulated RF signals anywhere over an IP network. This new technological advancement immensely expands the possibilities in the virtualization of the ground segment; resulting in improved operational efficiencies, flexibility and new possibilities. Eliminating physical distance is a key benefit when converting RF to IP and has taken great care to achieve this while preserving the Carrier–to–Noise Ratio (CNR) and timing to reliably recover the signal at the downstream device.

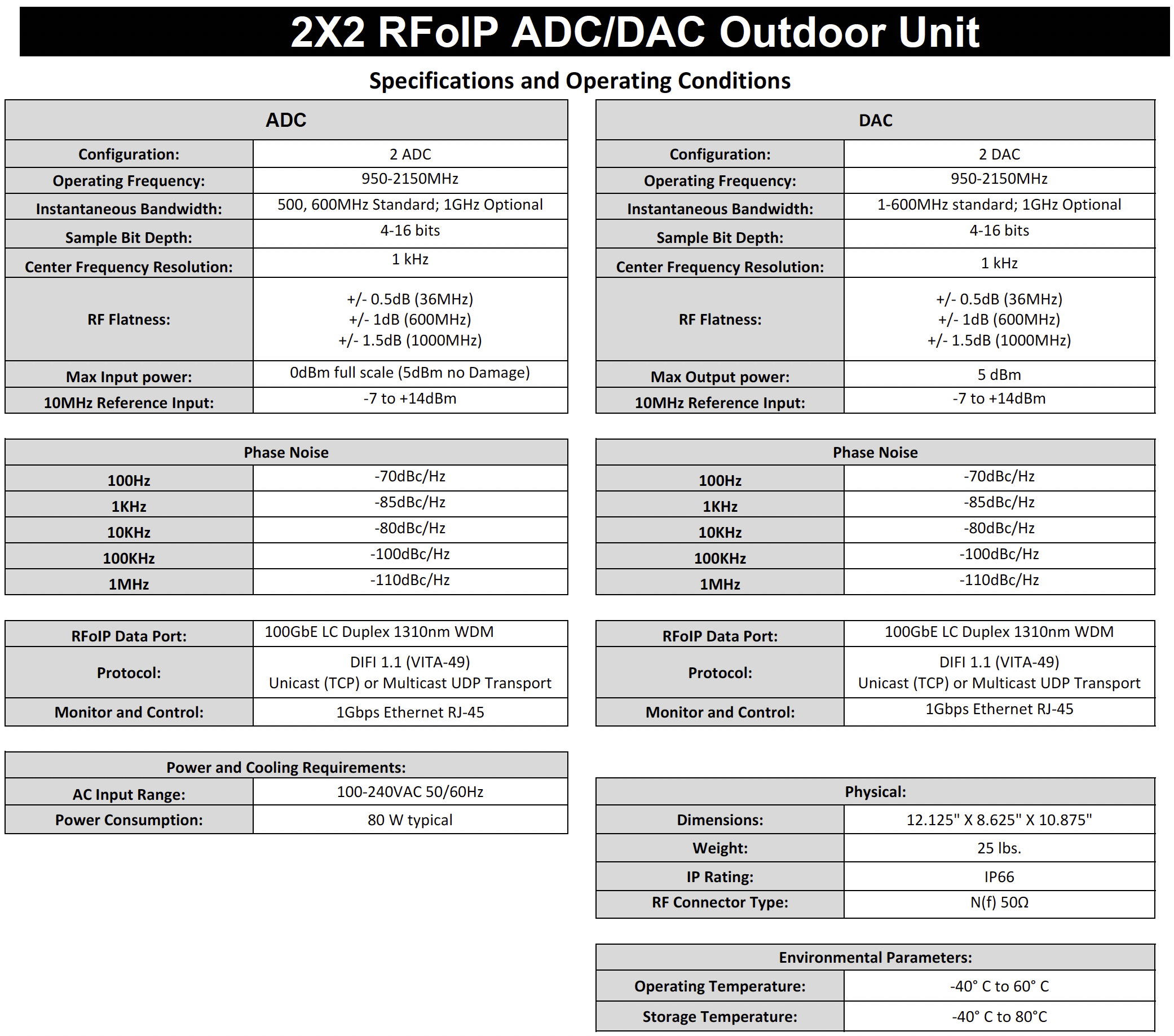

Features & Benefits

  • 950-2150 MHz Operating Range
  • 4 RF Ports (2 ADC X 2 DAC)
  • 500-600MHz selectable BW per channel, 1GHz BW Optional
  • 500MHz, 600MHz and optional 1GHz Bandwidth selectable
  • 10MHz Reference input
  • DIFI 1.1 (VITA49) TCP/IP Unicast/Multicast 4-16 bit
  • Web or SNMP control. Interfaces to MAGNUM and VUE NMS System
  • 100 GbE backhaul using LC/UPC Duplex 1310nm WDM Fiber
